Pig Iron Granulator Featuring Low-Cost Design and Stable Operation Technology

Contributing to low-cost construction and stable operation of the pig iron granulator, which acts as a pig iron buffer between the blast furnace and the steelmaking processes.

Solution Point

JFE Steel's original design realized a compact pig iron granulator with the world's highest level treatment capacity and low-cost construction.
(Compared to conventional technology, simultaneously achieves a 70% increase in capacity and 13% cost reduction)
A high-efficiency, sustainable operating technology was also established to maximize utilization of equipment capacity (operating rate, treatment capacity).

Features 01

Expected Problems

・We want to construct a compact pig iron granulator at low cost.

・We're having problems with stable operation of our existing pig iron granulator.

Features 02

Technology highlight

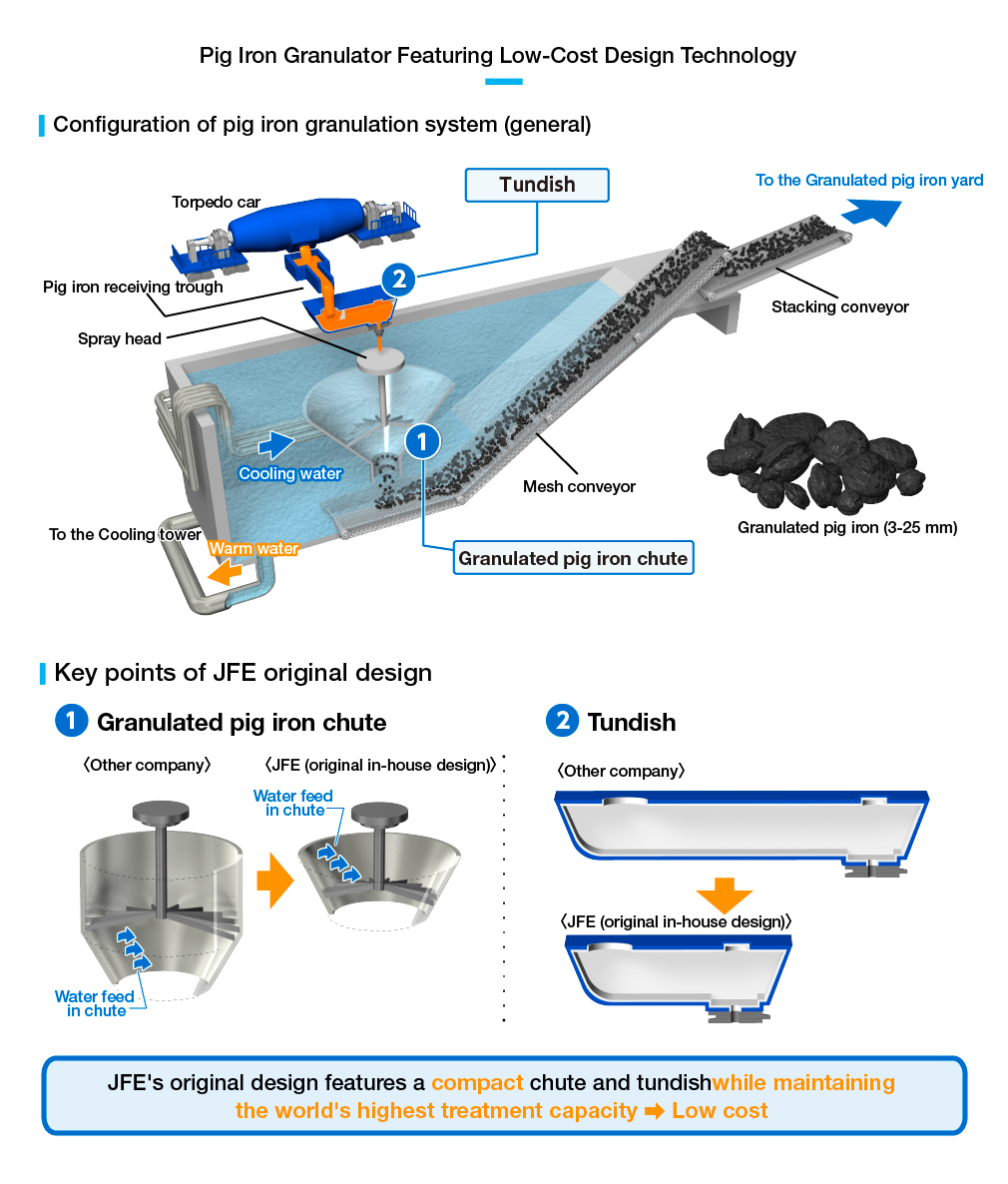

・JFE's original design realized a compact granulated pig iron chute and tundish, while maintaining the world's highest level treatment capacity. Construction cost of the equipment was significantly reduced and an operating method to achieve sustainable high speed processing was established.

Features 03

Proposed Solutions (Examples)

JFE Steel provided design and operating technology support in response to inquiries for consultation.
This technology came onstream at JFE Steel East Japan Works (Chiba) in 2022, and is in stable operation at the designed capacity and operating rate.
*JFE can also respond to requests for consultation for nonferrous metal processes.
