Features 01

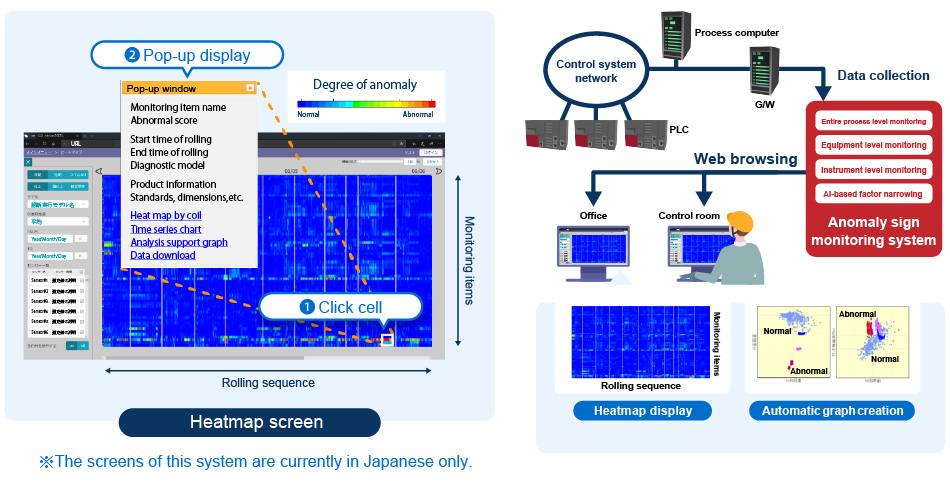

Features of J-dscomTM
￭ Realizes comprehensive and highly accurate monitoring by monitoring level (such as entire process level, facility level, sensor level).
￭ Realizes efficient, large volume (massive data) monitoring using the heatmap screen as a platform.
￭ Simplifies and speeds up identification of factors by automatic creation of graphs for variables of interest.
Features 02
Technology highlight

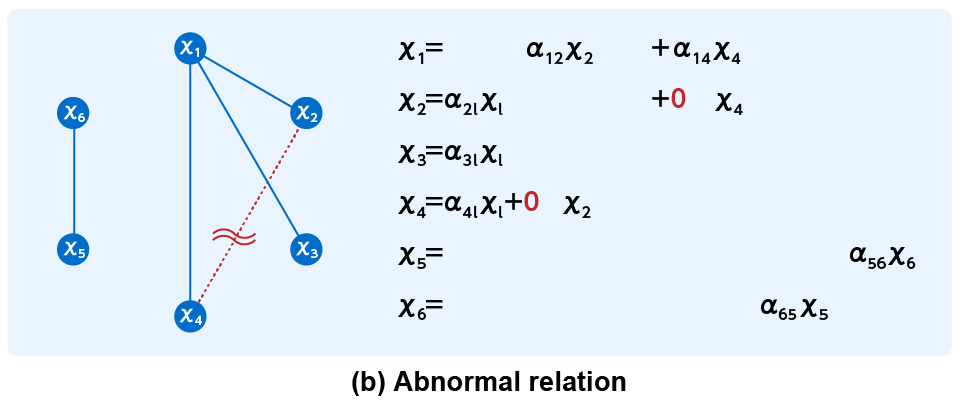

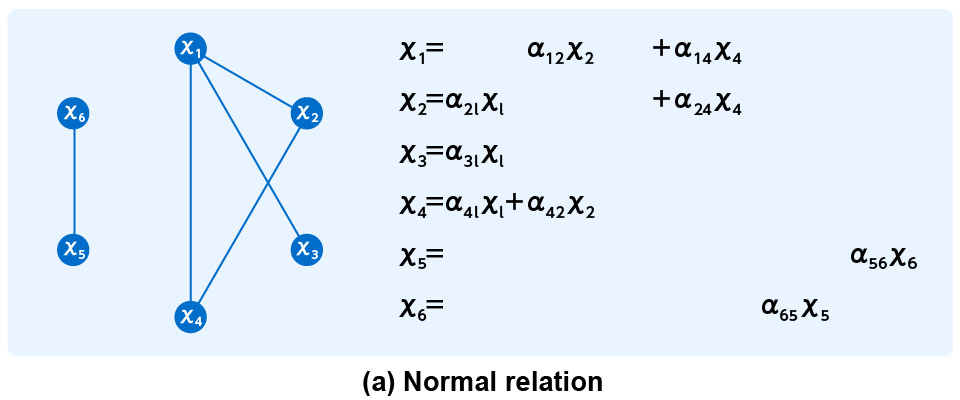

￭ Entire Process Level
• Monitors breakdown of the correlation between variables in entire process
(Lasso regression).
(Lasso regression).

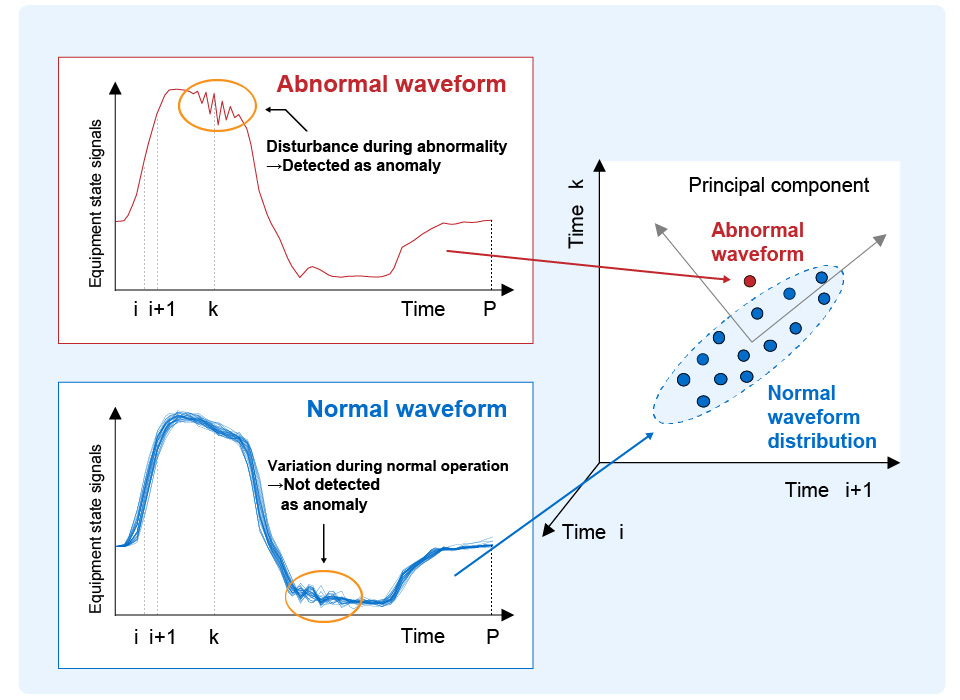

￭ Equipment Level PCA waveform monitoring
• Monitors equipment with uniform signal waveforms.
• Detects waveform disturbances when an anomaly occurs by principal component analysis (PCA).

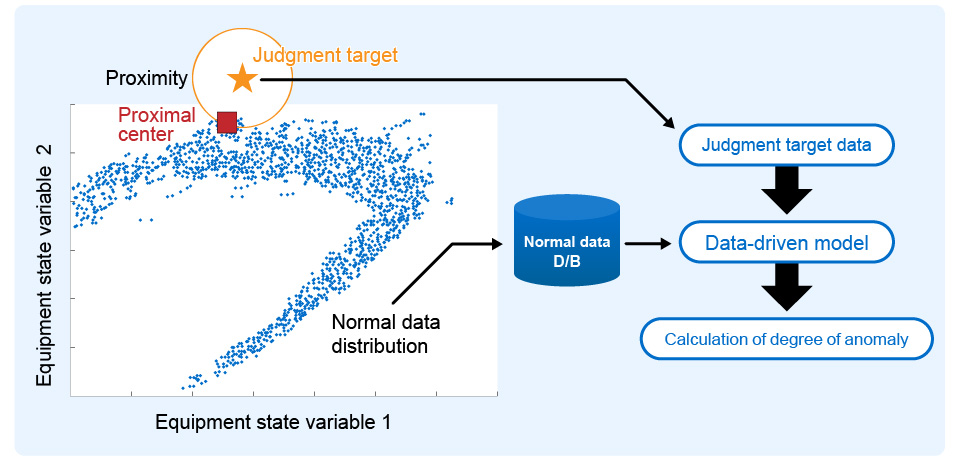

￭ Equipment Level DBM correlation monitoring
• Monitors equipment in which a correlation exists between variables.
• Can be applied even in cases of large nonlinearity and large variations.
Features 03
Detection example

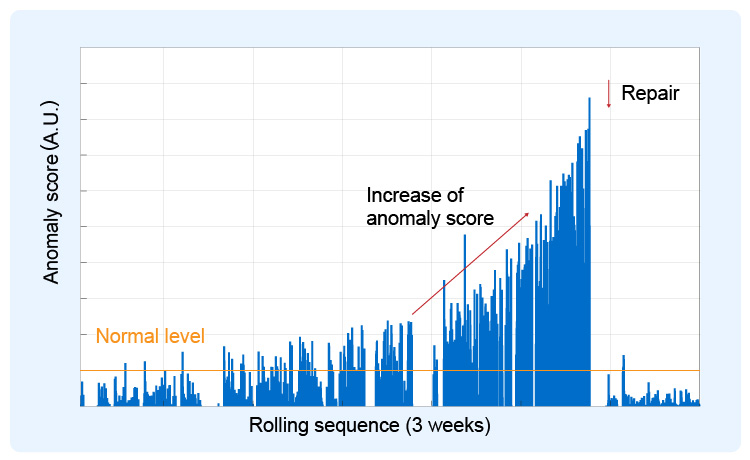

Transition of anomaly score of variables related to rolled material conveying equipment
Useful technology/system for detecting signs of anomalies that was developed from the user’s perspective!
