Lightning Protection Device

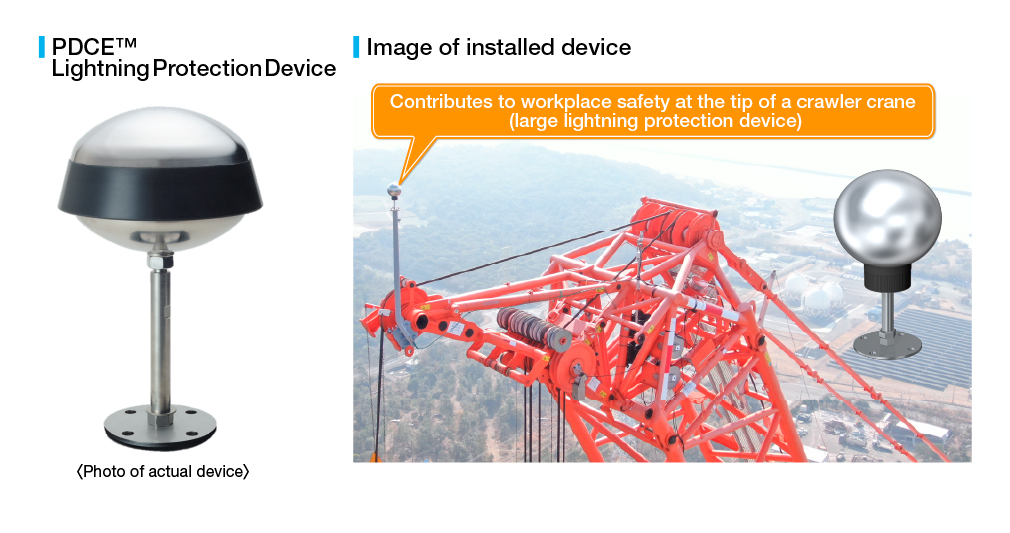

"PDCE™ Lightning Protection Device" – New Type of Lightning Protection Device that Controls Lightning

From conventional lighting rods to lightning protection device – A new lightning countermeasure for a lightning-free society!

Solution Point

Reduces the risk of power outages, failure of building equipment and machinery, and fires due to lightning.
Unlike conventional lightning rods, this has a function that prevents lightning strikes!
When installed at a height of 20 meters, it is possible to expect a cone-shaped protection range with the PDCE™ as its apex and a radius of 100 meters.

※”PDCE” is a trademark of Lightning Suppression Systems Co., Ltd.
※JFE ComService Co., Ltd. Is an authorized distributor in Japan for Lightning Suppression Systems Co., Ltd.

Features 01

Expected Problems

・Have you already completed your lightning countermeasures?

・Don't you feel that there's a limit to countermeasures in lightning-prone areas?

Features 02

Technology highlight

・A hemispherical-shaped lightning conductor is adopted, rather than the sharp electrode shape of conventional lightning rods, making electrical discharges difficult, and currents from the ground surface are suppressed by including an insulator to prevent so-called "welcoming discharges" (technical term: stepped leader) that attract lightning strikes.

・This lightning protection system is compatible with the power-receiving provisions of the Building Standards Act.

Features 03

Proposed Solutions (Examples)

・Based on the needs of customers, JFE Steel offers a line-up of 19 different types, ranging from devices that can withstand exposure on high-temperature smoke (max. 500°C ), to a flat-mounted type and compact & lightweight models.

・Manufactured in Japan in a dedicated factory with JIS Q 9001 and ISO 9001 certification.

・Has already been introduced by 14 out of 15 major private railway companies.

・Installation work, including the site survey, design and actual installation at the site, can be performed by a specialized construction company which is certified to install this system.
