On-line Wirerod Bend Meter

Automatic On-line Measurement of Bending of Wirerods during Production

Solution Point

Automatic on-line measurement of the dimensional profile of round wirerod material, contributing to an improved level of quality control by fast quantitation of the amount of bending.
Reduces the operator's work load, and also improves safety.
Eliminates measurement errors due to individual differences.

Features 01

Expected Problems

・Is automation of bending/dimensional measurement of products, etc. a problem?

・Are you worried about the long lead time from production to dimensional inspection?

Features 02

Technology highlight

・Full automation of bending measurement work.

・Shortens the lead time from production to dimensional inspection by using on-line data.

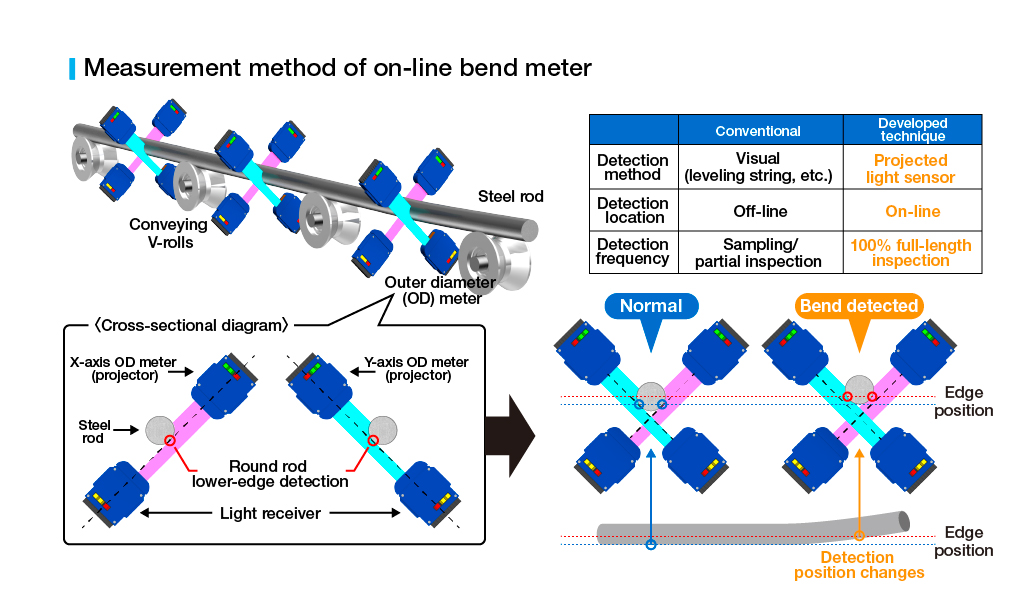

・Achieves high-accuracy bending measurement by combining technology based on the optimum arrangement of sensors and original algorithm developed by JFE.

Features 03

Proposed Solutions (Examples)

Since on-line bending measurement of total amount and length is possible, it prevents shipping of defective bending material delivered to clients. It also eliminates the operator's work time for off-line measurement and improves productivity.
