Electrogalvanized Steel Sheets
Black Chromate-free Coated Steel Sheet with
High Emissivity and Electrical Conductivity = Z1 =
Suitable for applications such as cover boxes which require internal heat irradiation and insulation of electromagnetic waves
Type of chemical treatment
- Chromate-free coating
- Electrochemically blackening coat based on Zn-Ni coating, and anti-fingerprint coating.
Features
- Attractive black color. Suitable for optical components and similar products.
- High heat absorption and radiation properties can be expected to reduce exhaust fan use.
- Excellent electrical conductivity in comparison with painted steel sheets enables electromagnetic shielding and noise prevention.

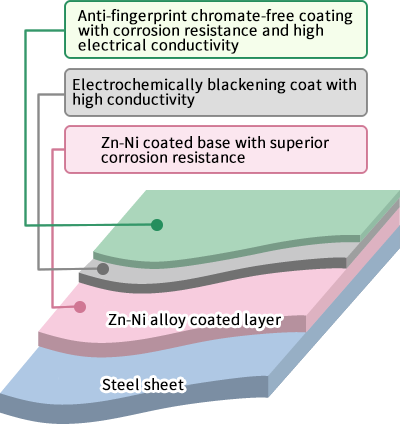

Structure of coating

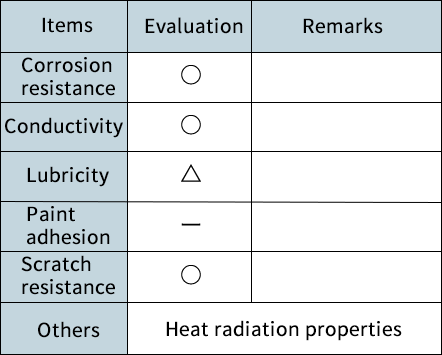

Functional properties

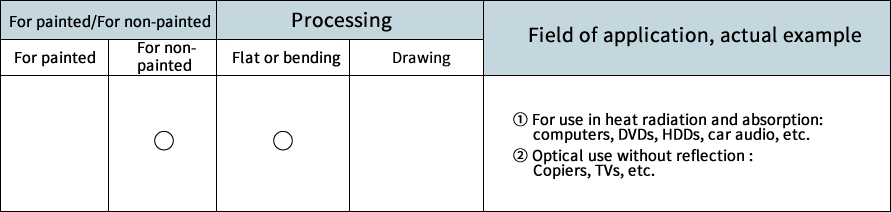

Recommended use
Special quality performance examples of Z1

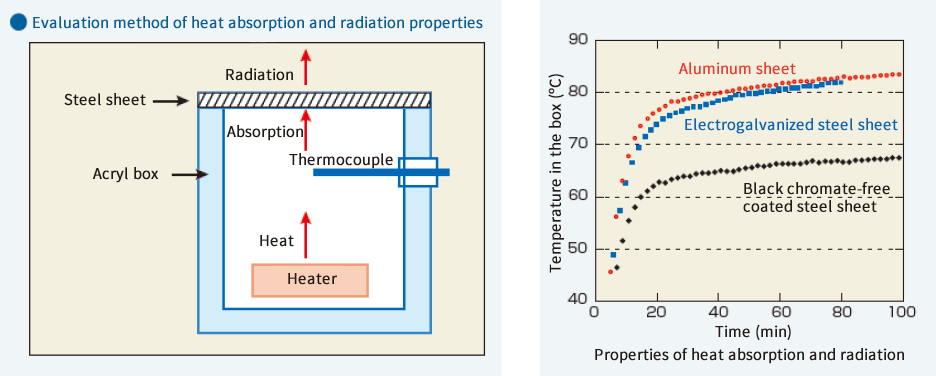

Excellent heat radiation properties
